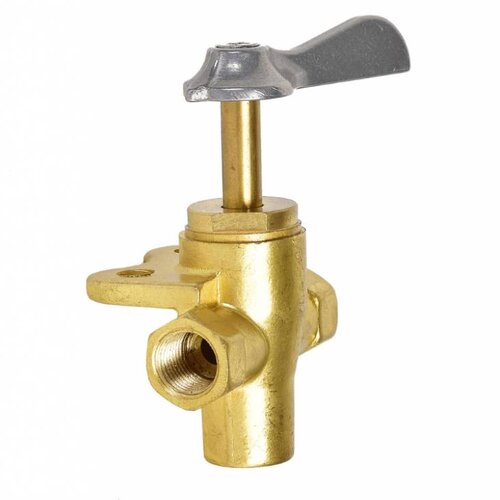

Tank Two-Way Valve -1/4" - Brass

In stock
Ordered before 16:00, delivered the next day within the Netherlands. Outside the Netherlands on request.
Ordered before counting..., delivered tomorrow
Article code 91301
Information

Information about Tank Two-Way Valve 1/4" (6,4 cm), Brass.

This is a 2-way valve for simultaneous connection of two tanks with a supply line. Can be attached to the flange with two screws (screw hole Ø 7 mm). In neutral position the lever closes all lines.

Fuel tap with 2-way connection
Material: brass
3 connections for fuel lines (2x laterally + 1x lower)
Connection for 2 tanks

Dimensions:

  • Min. Installation depth: 60 mm / 80 mm
  • 2 holes for fixing screws with a diameter of 6.8 mm
  • Thread: 1/4 "
  • Total height: 87 mm
  • Width: 58 mm
  • Length of lever: 62 mm
