L&S 125 Pro hydraulic steering kit

Information about the L&S 125 Pro hydraulic steering set

Complete hydraulic control set from Leceomble & Schmitt. This French producer guarantees quality and good workmanship.

For outboard engines up to 125 hp / port to starboard: 5.4 revolutions
(200 H.P. for two engines operating in opposite rotation)

Kit includes:

• Steering Pump, Hoses & Cylinder
• Maximum engine power: 125 hp.
• Number of revolutions: 5.4
• Cylinder weight: 2.8 kg.
• Weight pump: 2.8 kg.
• CE inspection
• 2 year warranty on set

Set consists of:

• Pump 20 HB with lock valve
• Cylinder VHM EX 125 HP + fittings
• Set of elbow pump fittings Ø 6
• 10 metres of flexible tube Ø 6
• OB Filling kit

	Flow rate		20 cc/t		1.2 cu.in
	Minimum size of tubing		∅ 6 mm		25″
	Weight		2.8 kg		6.17 lbs
	Volume		400 cc		24.4 cu.in
	Maximum Wheel diametre		∅ 520 mm		20 1/2″

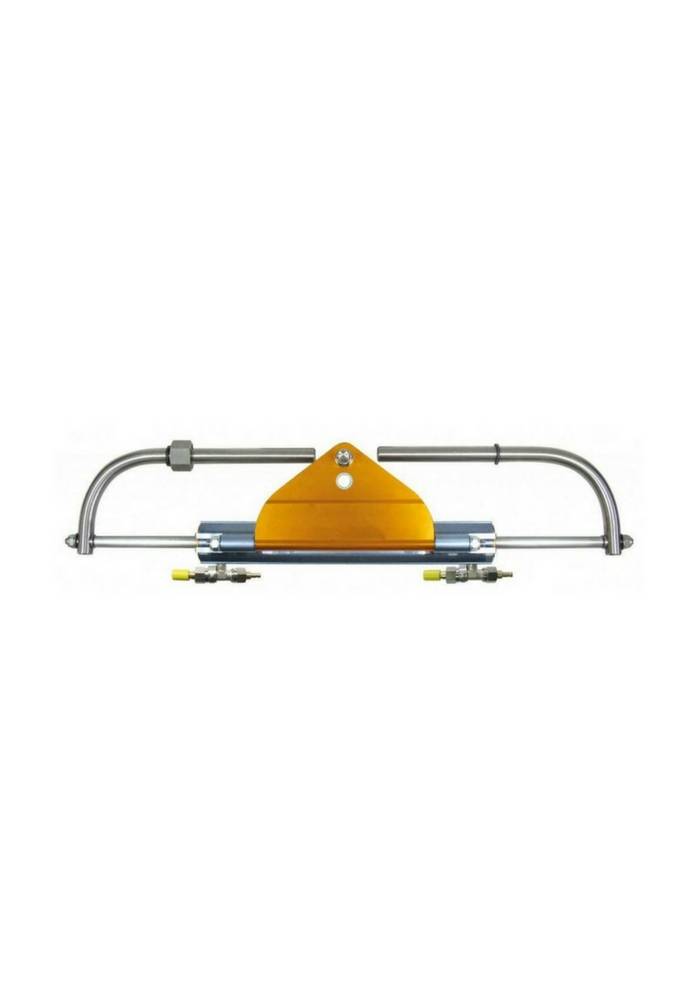

Cylinder VHM EX 125 HP + fittings Weight : 2.8 Kg Volume : 107 cc Stroke : 212 mm
