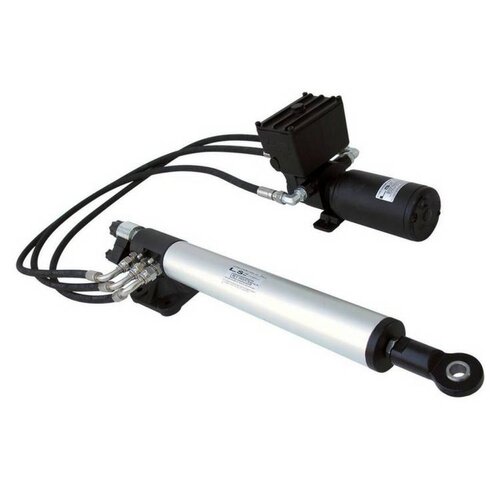

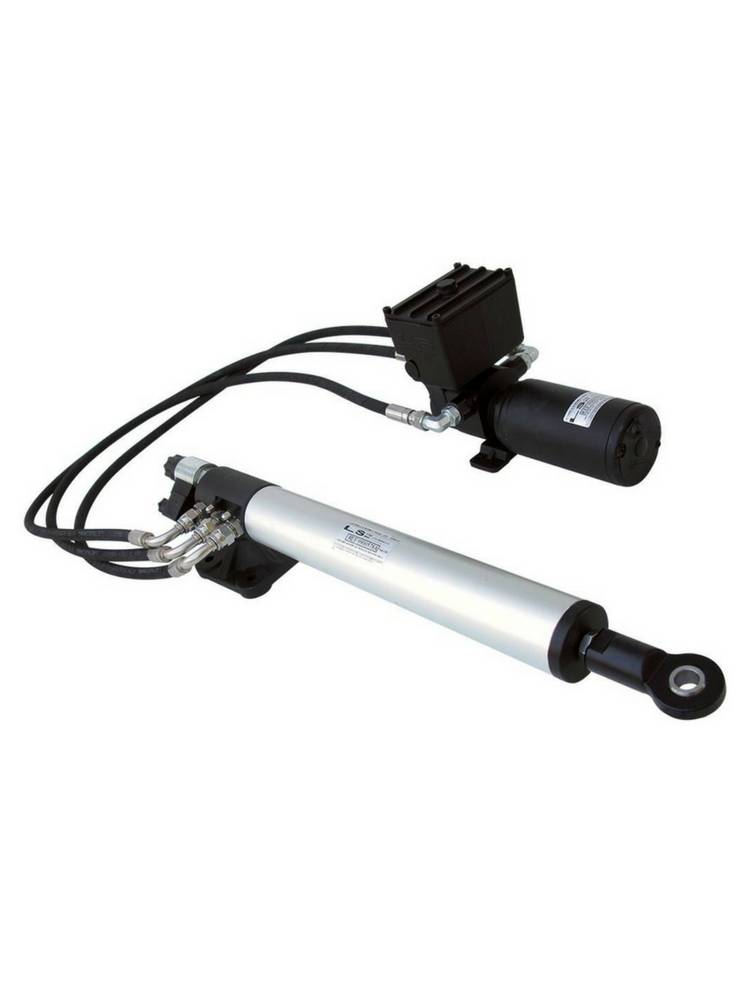

Information about the Lecomble & Schmitt Linear drive 50 ST 20 DEBP Newave 12 V
- Hydraulic cylinder with one rod with integrated electric bypass.
- Compact overall dimensions.
- Mounted directly on the quadrant.
- Possible floor, ceiling or bulkhead installation of the cylinder.
- Separately reversible power pack with fixed power for installation at the location you selected.
- The set is assembled and supplied with a flexible tube of 1.20 meters.
- Has the best thrust / electrical consumption on the market.
For steering wheel diameters of more than 1200 mm and for B&G and Simrad autopilots, we recommend using linear drives with adjustable flow on the reversible power packs.
 |
Power Packs
- 2203074 RV1 Newave 12 V
- 2203077 RV2 Newave 12 V
- 2203080 RV3 Newave 12 V
|
|
|
| |
RV1, RV2, RV3 Newave |
| A |
80 |
3 5/32 |
| B |
70 |
2 3/4 |
| C |
206 |
7 6/64 |
| D |
4 |
| E |
24 |
_ 15/16 |
| F |
280 |
11 1/64 |
|
|
|
VHM 50 ST 20 Newave 12 V |
 |
| |
50 ST 20 Newave |
| Max. thrust |
700 kg |
992 lbs |
| Gewicht |
5 kg |
11 lbs |
| A |
120 |
4 23/32 |
| B |
715 |
28 9/64 |
| C |
17 |
_ 43/64 |
| D |
70 |
2 3/4 |
| E |
300 |
11 13/16 |
| F |
240 |
9 29/64 |
| G |
218 |
8 37/64 |
|
