Linear drive 50 ST 20 DEBP Newave 24V

Out of stock
Unfortunately the product is not in stock. We will contact you as soon as possible to indicate the delivery time.
Article code 2203069-1
Information

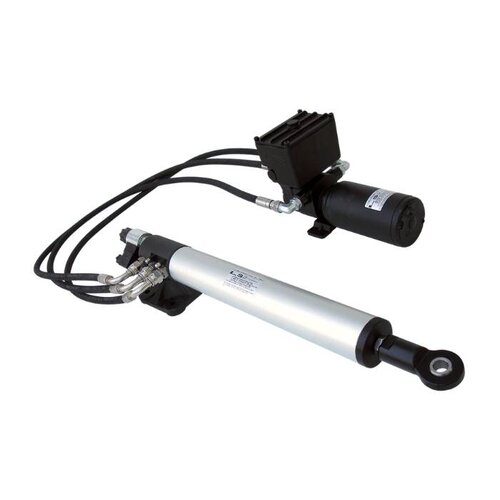

Information about the Lecomble & Schmitt Linear drive 50 ST 20 DEBP Newave 24 V

Hydraulic cylinder with one rod with integrated electric bypass.
Compact overall dimensions.
Mounted directly on the quadrant.
Possible floor, ceiling or bulkhead installation of the cylinder.
Separately reversible power pack with fixed power for installation at the location you selected.
The set is assembled and supplied with a flexible tube of 1.20 meters.
Has the best thrust / electrical consumption on the market.


For steering wheel diameters of more than 1200 mm and for B&G and Simrad autopilots, we recommend using linear drives with adjustable flow on the reversible power packs.

Power Packs

  • 2203074  RV1 Newave 12 V
  • 2203077  RV2 Newave 12 V
  • 2203080  RV3 Newave 12 V



  RV1, RV2, RV3 Newave
A 80 3 5/32
B 70 2 3/4
C 206 7 6/64
D 4
E 24 _ 15/16
F 280 11 1/64





VHM 50 ST 20 Newave 24 V
  50 ST 20 Newave
Max. thrust 700 kg 992 lbs
Gewicht 5 kg 11 lbs
A 120 4 23/32
B 715 28 9/64
C 17 _ 43/64
D 70 2 3/4
E 300 11 13/16
F 240 9 29/64
G 218 8 37/64
